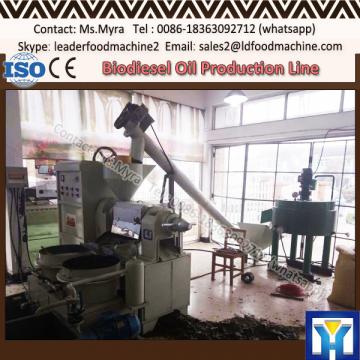

China professional manufacturer soybean oil refinery

Place of Origin:
Jinan, China (Mainland)
Brand Name:
LD
Certification:
CE ISO BV SGS
Min.Order Quantity:
1 Set/Sets soybean oil refinery
Price:
US $8,000 - 156,000/ Set
Payment Terms:
paypal,UnionPay, Visa/MasterCard, Amex, Discover,T/T
Supply Ability:
30 Set/Sets per Month soybean oil refinery
Contact Now


Product Description

What is the main material of Biodiesel Oil Production Line?

NO. Raw material Note
1 Slaughterhouse scraps From slaughter house
2 swill cooking oil, swill Waste cooking oil
3 Fatty Acid & Acid Oil from plant refinery For example the bean & peanut etc.....
4 Animal bone, viscera fatty and so on......

The China professional manufacturer soybean oil refinery is same,just processing and catalyst is different,Shandong Leader Machinery Co.,Ltd. engineer will training you as your raw material use.
What is the advantages of biodiesel?
Engine is starting at low temperature(-10C).
It not belongs to dangerous cargo,so it’s easy to transport.
There is less sulfur and aromatic alkyl in biodiesel,so it's less harmful to human and environment.As a kind of renewable energy sources,the biodiesel will not finised.
The supply of biodiesel is not controlled by OPEC,it’s benefit to the stability of international petroleum market.

China professional manufacturer soybean oil refinery

Technical flowchart of soybean oil refinery

Alkali hot water

↓

Crude oil→ filter→ mix→ reactor→ mix→ reactor→ centrifugal separation→ oil residue

↑ ↓

Phosphoric acid hot water→ mix

↓

degumming oil← cooler ←dry ←centrifuge separation ←mix ←alkali liquor

↓

vacuum steam jet pump ← steam citric acid

↓ ↓

bleaching earth→ mix→ decoloring→ filter→ decoloring oil→ mix→ heat

↓

refined oil← filter ← cool ←deodorizing ←vacuum

Main process introduction of palm oil purification process

1)Neutralization section

After heating, oil is then carried out with caustic soda to saponify the fatty acids and to ease the removal of the precipitate in centrifugal separator. The contact is made in mixer, and then a short contacting time is allowed in reactor. The lye saponifies the fatty acids in the oil and forms soap stock, which is removed together with the gums and the excess caustic solution. The caustic soda solution is coming from the caustic dosing device. The neutralized oil still contains small amounts of residual soap, which must be minimized before further processing. Some soft hot water (usually boiler treated water or steam condensates) is added to the oil in mixer and is then sent to washing centrifugal separator, where the residual soap is separated from the oil. The oil is dried under vacuum as the residual moisture must be reduced. The oil is first heated in a plate heat exchanger, by means of low pressure steam. The oil is then dried under vacuum in the dryer. of the bleaching section with its vacuum group. Then the oil is sent to the bleaching section by pump.

2)Bleaching section

Crude oil is fed to the oil-earth mixer through heat exchanger and heater. Prior to bleaching, the bleaching earth is dosed into the oil by means of a volumetric dosing system. The bleaching earth hopper is installed above the oil-earth mixer and assures continuous operation of the plant. The hopper can be automatically filled by means of the pneumatic earth feed assembly. After bleaching earth dosing, the oil flows into the bleacher. After bleaching, the oil-earth mixture is sent to filter and security filter by means of pump. After the filtration operation, oil recovery from spent cake is done by steam blowing and the spent cake is discharged and evacuated through a chute to a disposal container.

3)Deodorization Section

The bleached oil is first de-aerated in a buffer tank, It works at the same vacuum as the deodorizer and acts also as buffer feed capacity. After deaerator, Oil is sent by pump to be preheated by the heat exchange with the deodorized oil to a temperature between 190° and 210°C, and deodorized oil is cooling to a temperature of about 135°C. Finally, the oil is heated by conduction oil or high pressure steam until it reaches the final deodorizing temperature. After deodorization, the oil is cooled with feeding oil, polished, and pumped into storage tank.
This cooling and contact combined with a lower velocity will allow catching nearly all fatty acids distillates present in the gas flow.

4)Crystallization Section

Feedstock is heated and pumped to crystallizers. The oil is cooled according to a pre-determined cooling profile by means of controlling the temperature of the cooling medium circulating in the cooling coils. The design of this cooling profile depends on the quality of feedstock and the quality of olein/stearin fractions required. This is to keep the oil homogenized with frequency mechanical agitation in the crystallizers. A typical cooling program lasts for a certain time, depending on the quality of feedstock and product. When the oil appears as a thick semi-solid mass (slurry) containing stearin crystals in liquid olein, it is ready for filtration. If the crystallization result is not desirable, the slurry can be circulated through the feed oil heater for re-heating before being sent back to the feed oil tank for re-processing.

5) Filtration Section

When crystallization is completed, the slurry is fed to the Membrane Filter Press for filtration. The operation includes filter feed, filtering, squeezing and cake releasing. When the chambers are full after cake forming, the pumping will stop and the membranes are inflated to squeeze dry the filter cakes. After which, the residual oil in the core is blown dry by compressed air. Thereafter, the filter is opened and the cake will drop into a stearin tank. The stearin cake is melted in this tank by steam coils before it is discharged to storage. Olein flows into the olein tank, and is pumped to the outer olein storage tank.

Successful project cases of palm oil purification process

China professional manufacturer soybean oil refinery

China professional manufacturer soybean oil refinery


China professional manufacturer soybean oil refinery

Our workshop to manufacturer palm oil purification process

Delivery onsite of palm oil purification process

China professional manufacturer soybean oil refinery China professional manufacturer soybean oil refinery

Shandong Leader Machinery Co.,Ltd. is one of the leading Manufacturers and Suppliers of China professional manufacturer soybean oil refinery.Shandong Leader Machinery Co.,Ltd. manufacture China professional manufacturer soybean oil refinery making machine using cutting-edge technology, Shandong Leader Machinery Co.,Ltd. have many kinds of Biodiesel Oil Production Line for you reference,such as China professional manufacturer soybean oil refinery ,Shandong Leader Machinery Co.,Ltd. can meet your different requirement in Biodiesel Oil Production Line.Welcome to contact Shandong Leader Machinery Co.,Ltd.,contact name:Ms.Myra for a quotation
(Tel/whatsapp:0086-18363092712, Email:sales2@ldfoodmachine.com,Skype:leaderfoodmachine2).Welcome to send us your enquiry about capacity for China professional manufacturer soybean oil refinery, inform us raw material you want to use for China professional manufacturer soybean oil refinery,and specific requirements for China professional manufacturer soybean oil refinery.Shandong Leader Machinery Co.,Ltd. will provide you best solution for your project about Biodiesel Oil Production Line.

Shandong Leader Machinery Co.,Ltd. value "honesty, innovative and quality" because Shandong Leader Machinery Co.,Ltd. know that Shandong Leader Machinery Co.,Ltd. are not only supplying equipment to our clients but the partners to help our clients to get a better result.Keeping this in our mind,Shandong Leader Machinery Co.,Ltd. not only make high quality food processing equipment, but also help the clients to figure out the optimum processing work flows,make amendments according to client's specific needs,training staffs for the user of our equipment and even more, because Shandong Leader Machinery Co.,Ltd. believe that our users or clients' success is the foundation of ours.
