What is the main material of Biodiesel Oil Production Line?
NO. Raw material Note
1 Slaughterhouse scraps From slaughter house
2 swill cooking oil, swill Waste cooking oil
3 Fatty Acid & Acid Oil from plant refinery For example the bean & peanut etc.....
4 Animal bone, viscera fatty and so on......
The CE approved castor seed oil expeller machine is same,just processing and catalyst is different,Shandong Leader Machinery Co.,Ltd. engineer will training you as your raw material use.
What is the advantages of biodiesel?
Engine is starting at low temperature(-10C).
It not belongs to dangerous cargo,so it’s easy to transport.
There is less sulfur and aromatic alkyl in biodiesel,so it's less harmful to human and environment.As a kind of renewable energy sources,the biodiesel will not finised.
The supply of biodiesel is not controlled by OPEC,it’s benefit to the stability of international petroleum market.

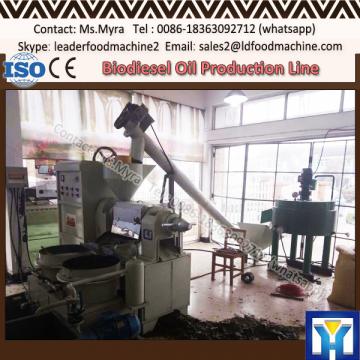

CE approved castor seed oil expeller machine
Flowchart of castor seed oil expeller machine:
Metering âCleaning âMagnetic separationâDestonerâCrushing âSoftening âFlaking
âCooking âPre-pressing âgo to extraction section
â
Second oil press
Pretreatment process castor seed oil expeller machine:
a. Cleaning device: To remove various impurities in oilseeds, such as: iron, stones, clump,
such as the plant leaf, clean up till impurity content does not exceed 0.2%.
b. Crushing machine: Oilseeds are crushed into 6-8 pieces. In order to meet the
requirements of crushing, the peanut is suitable for crushing with the moisture of 7% to 12%.
c. Softening Process: The purpose of softening is to adjust the moisture and temperature
of oil, and make it soft.
d. Flaking process: Rolling raw material into flakes, and the purpose is to increae surface
area, destroy the peanut cell tissue, shorten the way of oil out from cake.
e: Cooking process: Use steam cooking, inject direct steam and cook the flakes to meet
the requirement of oil press.
f. Prepress: Press the flakes to leave about 16%-18% in the cake. The cake will go to
extraction process.
g. Second oil press: Press the cake till the oil residue is about 5%.
Consumption in Operation of castor seed oil expeller machine:
Residual oil in cake |
â¤5% (SUNFLOWER ) |
Handling capacity |
500kg-50tons/h |
Crude oil moisture and volatile matter |
⤠0.30% |
Power consumption |
⤠15KWh/T |
Steam consumption |
â¤120Kg/T (0.8MPa) |
Mechnical impurities |
⤠0.3% (adjustable) |
Moisture in crude oil |
⤠0.2% (qualified detonated experiment |
Main parts of castor seed oil expeller machine:
Extraction process of castor seed oil expeller machine:
1. Introduction
(1) Function: Edible oil extraction machine is an oil extractor through soaking or spraying
prepressed cake by a certain organic solvent. The principle of this part is the different
solubility of solvent.
(2) Use range: Edible oil solvent extraction fits for pre-press extraction of high oil- content materials and direct once time extraction of low-oil-content materials.
(3) Main parts: The edible oil extraction making series includes rotary extractor, toaster,
1st evaporator, 2nd evaporator, stripping tower, condenser, etc.
2. Main parts function
(1) Solvent pumps: continuously spray solvent to the rotary-typr extractor.
(2) Roary extractor: spray and soak the pre-pressed cake with solvent so that oil fats can be dissolved in solvent (form miscella).
After processing, you can get wet meal and miscella (mixed oil).
(3) DTDC: used to separate the solvent from the wet meal.
(4) Miscella tank 1st: pump the miscella ( oil with solvent) into the miscella 1st, then
add 10% saline water to it. The phospholipid and impurities in the miscella will react with
the saline water, at last the reactant precipitate, reaching the goal of purifying.
(5) Miscella tank 2nd: the purified miscella will be pumped into it.
(6) Miscella stripping: it will remove the remaining solvent in miscella. And the solvent will
be discharged to condenser for recycling.
(7) Condensers: used to cooling the solvent gas separated from the wet meal and miscella
for recycling.
3. Main Process
(1) The material (for pretreatment) is sent to rotary extraction by the scraper conveyor. The
material will extracted by the solvent or mix oil. After this step, we will get meal and mix oil.
(2) Meal is send to toaster. Through the toaster, the solvent in the meal will seperate from
the meal.The solvent goes to condenser and is recycled to rotary extraction.
(3) After the mix oil from the rotary extraction enters into 1st evaporator and 2nd evaporator,
most of the solvent in the mix oil is separated.
(4) The mix oil from 2nd evaporator goes to stripping tower and almost all the solvent is
separated. From the stripping tower, we can get crude oil and solvent. The solvent is sent to
condenser and is recycled to rotary extraction.
4. Advantages
(1) High oil yield, obvious economic benefit
(2) Less residual oil rate in the dry meal.
(3) Improving the quality of the meal.
(4) Low processing cost, high labor productivity.
If you are interested in our castor seed oil expeller machine, please contact me directly or send me inquiry details in the blow, and click "Send", i will reply you in the fastest speed.
